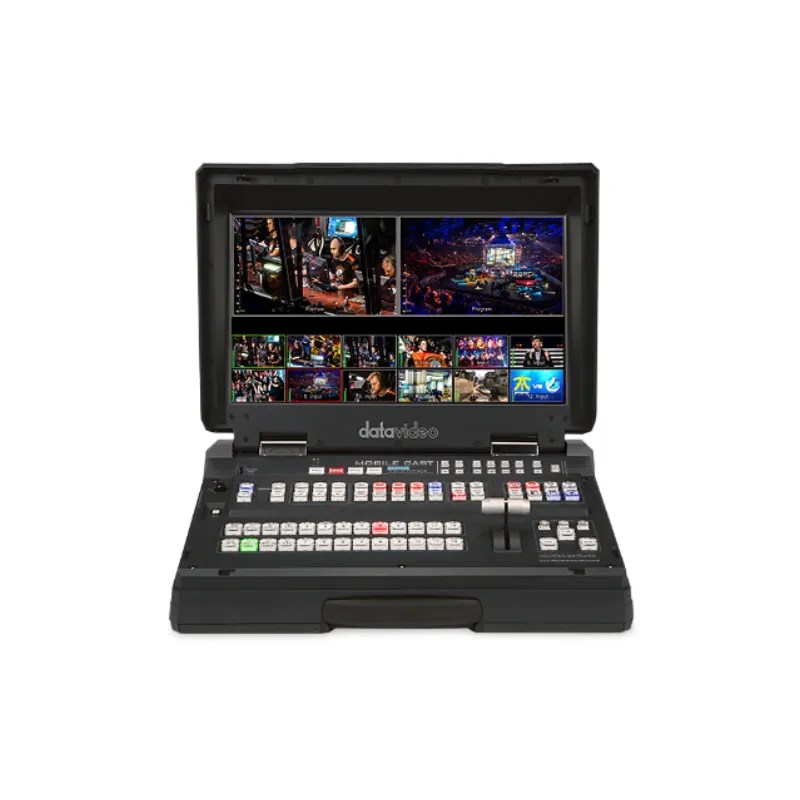

Datavideo HS-3200 12-CH Streaming Studio
The Datavideo HS-3200 12-CH Streaming Studio is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (5x SDI+4x HDMI) to help you produce a sophisticated and professional live event.
The Mobile Studio also features chroma/luma keying, DSK, PiP, a wipe generator, still stores, logo insertion, and a built-in title overlay system for use with a separately available character generator.
17.3″ Full HD video monitor with multiview
Four upstream keyers that support chroma/luma key
Multiview displays video input sources, preview video, and program video
Lightweight and portable design for live events and TV programs that need to mix a variety of video and audio sources
Datavideo HS-3200 12-CH Streaming Studio is Easy-to-use video streaming and recording device for professional video producers
| Video Standard | Full HD |
| Video Format | 1080p: 60/59.94/50 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Connectors | 8 x SDI, Video In 4 x HDMI, Video In 1 x HDMI, Monitor In 4 x XLR, Audio In5 x SDI, Video Out 1 x HDMI, Video Out 3 x HDMI, Program Out 2 x XLR, Audio Out1 x 9-Pin D-Sub, GPI In 1 x 3.5 mm, GPI Out 1 x RJ45, Streaming 1 x RJ45, Ethernet 1 x USB Type-A, Firmware 1 x 25-Pin Sub-D, Tally Out 1 x 4-Pin XLR, DC Power |
| Monitor Display | 17.3″ HD TFT LED Backlit 1920 x 1080 |
| Video Encoder | H.264/AVC, Main/High Profile Configurable Bit Rate up to 10 Mb/s |
| Audio Encoder | AAC-LC Configurable Bit Rate: 32 to 384 kb/s Sample Rate: 48 kHz, 16-Bit |
| Streaming Protocol | TS over TCP/UDP (Unicast & Multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP/RTMPS (Publish) |
| Certificates | CE, FCC |
| Operating temperature | 32 to 104�F / 0 to 40�C |
| Dimension (L x W x H) | 17.9 x 35.5 x 5.2″ / 45.5 x 35.5 x 13.4 cm |
| Weight | 17.8 lb / 8.1 kg |
Packaging Info
| Package Weight | 24.125 lb |
| Box Dimensions (LxWxH) | 22.6 x 22.5 x 9.5″ |
