ZEK-1 can read out the spin change of the Zoom ring on the camera
Datavideo ZEK-1-Zoom-Encoder-Kit can read out the rotation of the zoom ring on your camera by a little wheel that sits snug to your camera zoom ring. This gear must have a tight fit and the same thread as your camera lens.

M0.8 gear is mounted on the Zoom encoder while shipped
Standard it’s equipped with M0.8 gearing, which is the standard in most lenses. In some cases, M0.6 is used so an extra gear is included. In other cases, when your camera doesn’t have a threaded zoom lens, you can use a belt with M0.8 or M0.6 gearing.

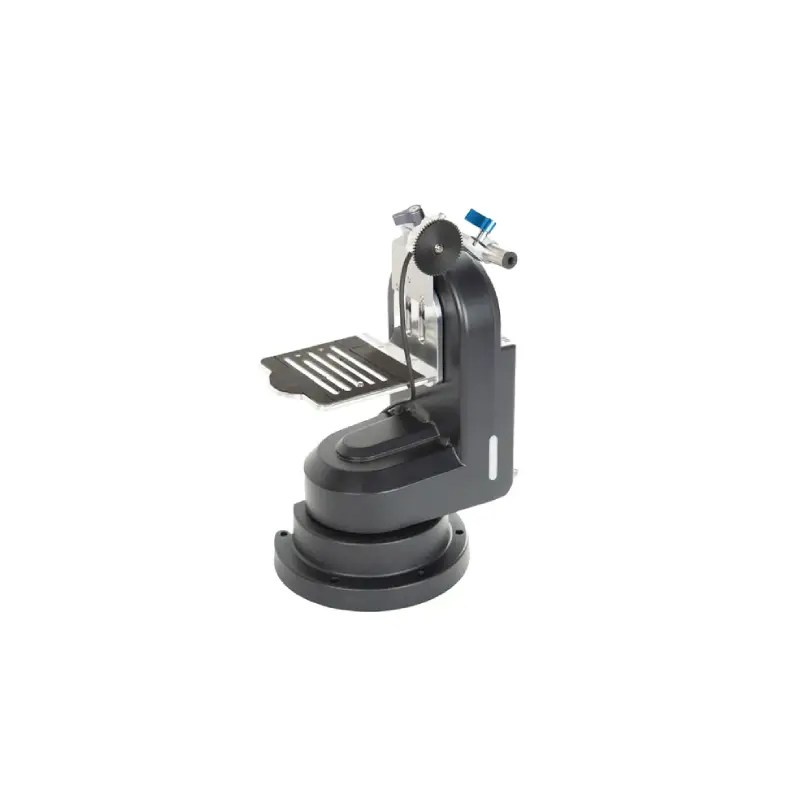

Camera Mount Plate
The larger mounting plate from ZEK-1 gives more space for you to mount the camera

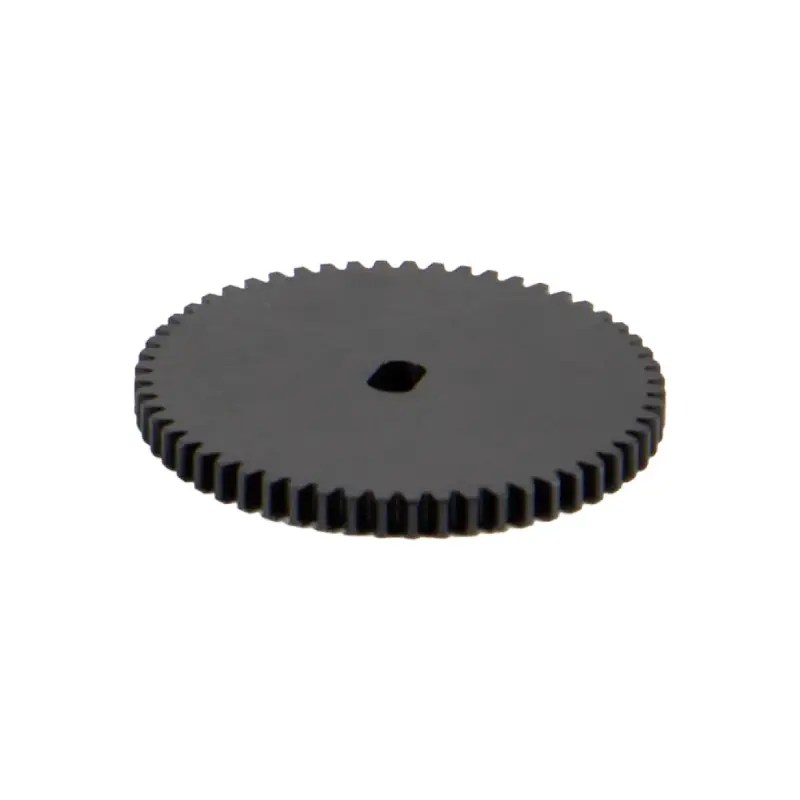

Datavideo ZEK-1-Zoom-Encoder-Kit is M0.6 Gear
Using Cameras with M0.6 gears on the zoom ring (ex: Sony X200), the additional M0.6 gear can directly match with the Lens.

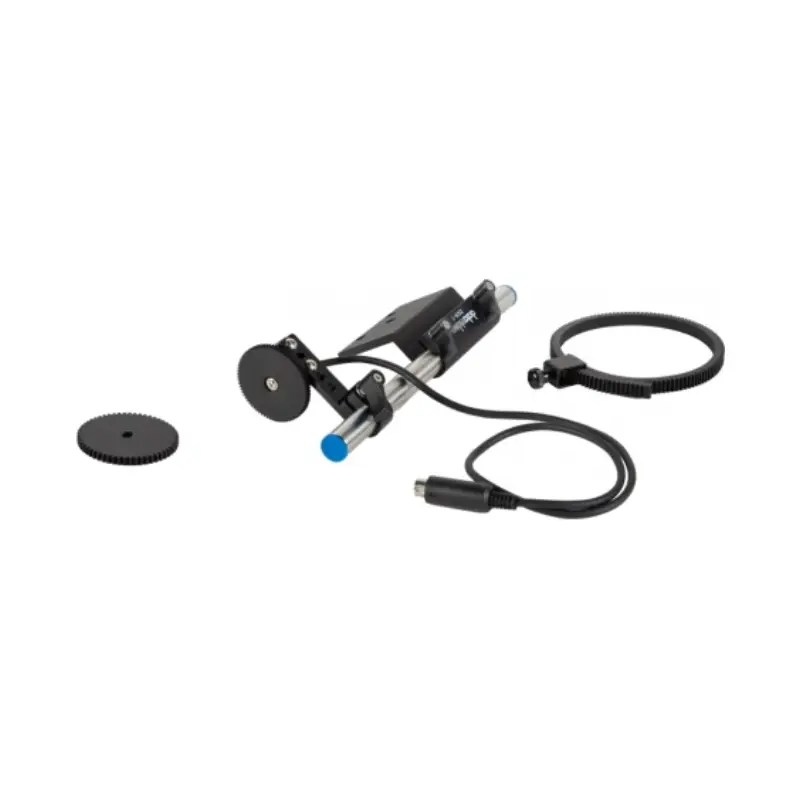

Metal Bar & Bar Holder & Zoom Encoder (M0.8 gear)
The metal bar holds the zoom encoder in place for achieving the best accuracy.

The gear provides the engagement with the camera’s zoom ring and the 4-pin mini-DIN connector and to be connected to the Zoom Sensor port on the PTR- 10/10T Mark II.

Gear Ring Belt designed for M0.8 gear
Wrap the gear ring belt around the zoom ring if your camcorder’s zoom ring is neither M0.6 nor M0.8 on the PTR-10/10T MARK II.

Datavideo ZEK-1-Zoom-Encoder-Kit is Compatible with most cameras that have a moving zoom ring except
– A single zoom/focus ring
– When the zoom ring is blocked by the servo motor
