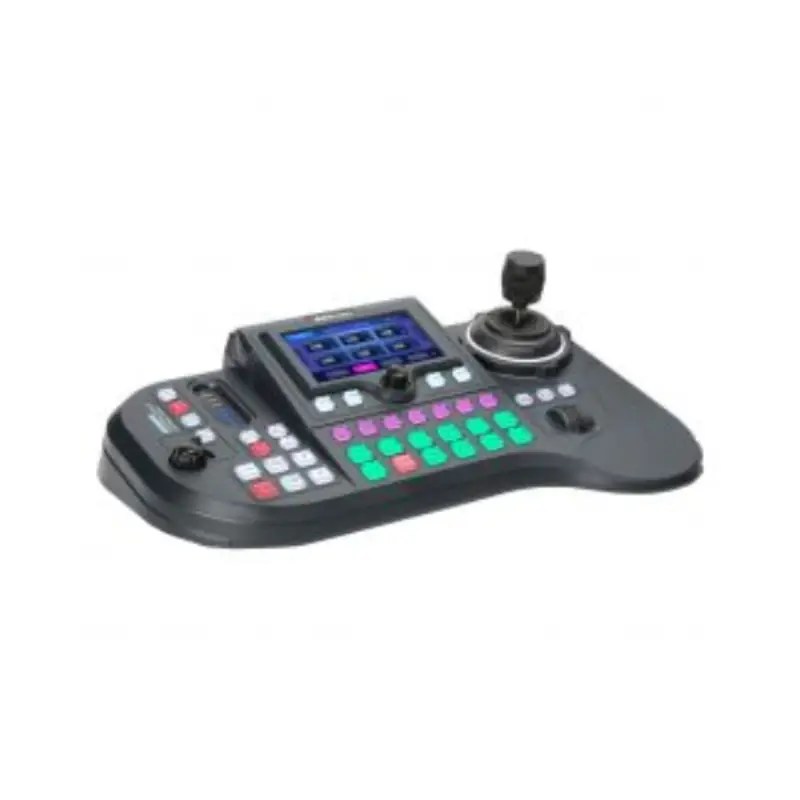

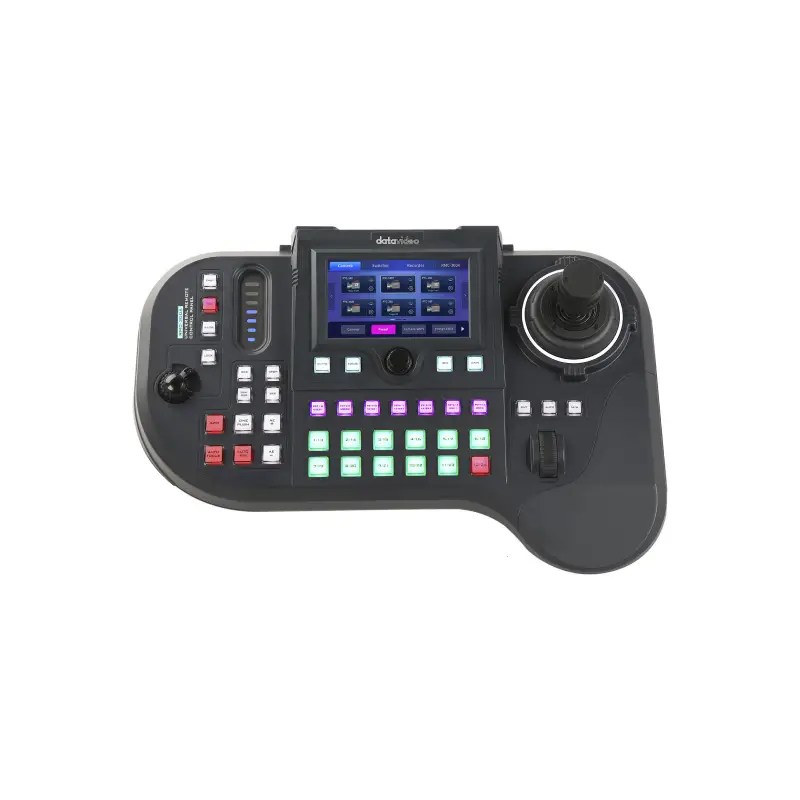

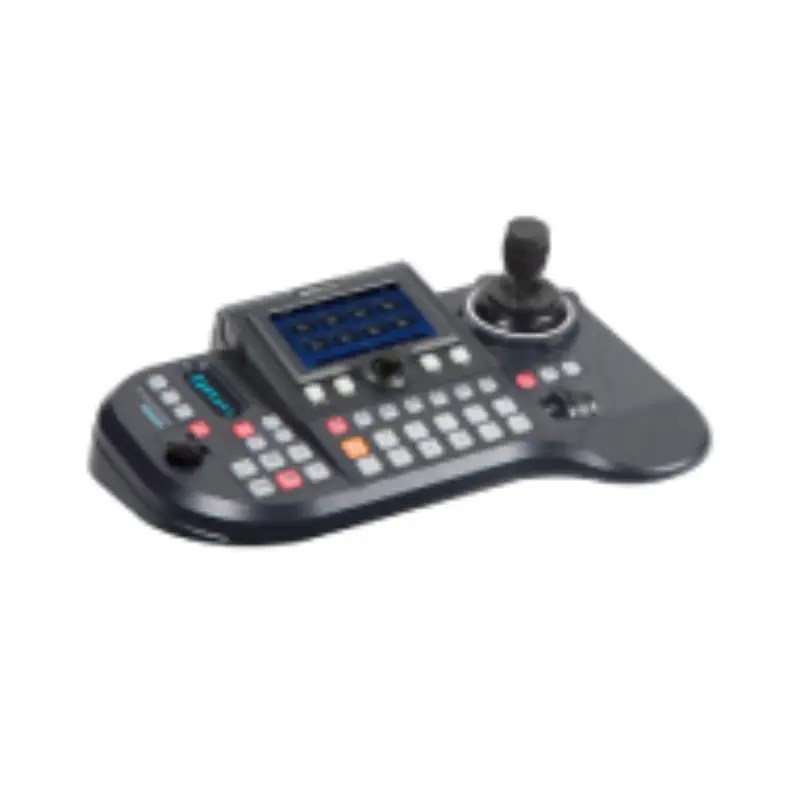

Datavideo-RMC-300A is a multi-functional Multi-camera Controller. It is able to control up to 24 PTZ and block cameras by Ethernet or up to 8 cameras by serial port RS- 422 transmission.
The RMC-300A is versatile to control Datavideo PTZ cameras and Robotic Head to set up the parameters via RS-422 or DVIP, and also capable of controlling Datavideo recorder and switcher up to 12 channels.
With the combination of friendly user interface on 5″ panel and hardware buttons, RMC-300A enable users to manage heavy EFP workflow without haste.
Specifications of Datavideo-RMC-300A
- Maximum Camera Control 24
- Preset (Position) 7 for each camera
- Control Protocol DVIP, DHCP client
- Connection to Cameras RS-422, Ethernet
- Input/Output USB 2.0 x2
- 10/100Mbps Ethernet (RJ-45 connector) x1
- RS-422 (RJ-45 connector) x1
- Built-in Control Panel Size: 5 inches
- Resolution: 1280 x 720
- Firmware Upgrade USB 2.0
- Dimension 420 x 294 x 134 mm
- Weight 1.5 kg
- Operating Temp. Range 0°C ~ 40°C (32°F~104°F)
- Storage Temperature – 10°C ~ 60°C (14°F~140°F)
- Operating Humidity 10 % to 80 % (non-condensing)
- Power DC 12V, 19W
