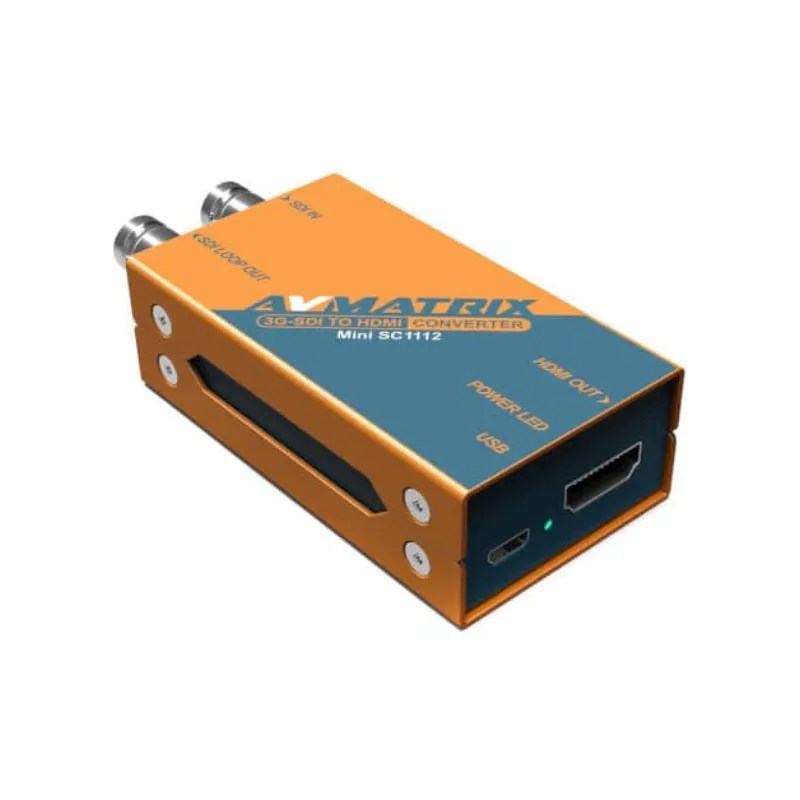

AVMATRIX Mini SC1112 3G-SDI to HDMI Converter
The AVMATRIX Mini SC1112 3G-SDI to HDMI Converter, it converts SDI input signal to HDMI signal and with SDI loop out. it is very convenient for users with the full size SDI and HDMI connectors.
| HDMI Formats | |
| HDMI Color Space and Precision | YUV 4:2:2 |
| HDMI Format Support | 480i – 60 // 576i – 50 // 720p – 24/25/30/59.94/60 // 1080i – 50/59.98/60 // 1080p – 23.98/24/25/29.97/30 // 1080p – 50/59.94/60 |
| SDI Formats | |
| HD Format Support | 720p – 24/25/30/50/59.94/60 // 1080i – 50/59.94/60 // 1080p – 23.98/24/25/29.97/30 // 1080psf – 23.98/24/25/29.97/30/50/59.94/60 // 1080p 50/59.94/60 |
| SD Format Support | 525i 59.94 625i 50 |
| SDI Auto Switching | Auto Selects SD-SDI, HD-SDI, and 3GSDI on Input |
| SDI Colour Space and Precision | YUV 4:2:2 |
| SDI Compliance | SMPTE 292M / SMPTE 259M / SMPTE 424M |
| SDI Video Rate | SD/HD/3GSDI |
| SDI Input / Output | |
| SDI Video Input | SD / HD / 3GSDI x1 |
| SDI Video Loop Output | SD / HD / 3GSDI x1 |
| HDMI Output | |
| HDMI Video Output | HDMI Type Ax1 |
| Common Parameters | |
| Dimension | 74mm x 41mm x 23mm |
| Operating Temperature | 0°c to 60°c |
| Power | Micro USB 1.5W 3.3 – 5V |
| Relative Humidity | 0% – 90% non condensing |
| Storage Temperature | 0°c to 60°c |
